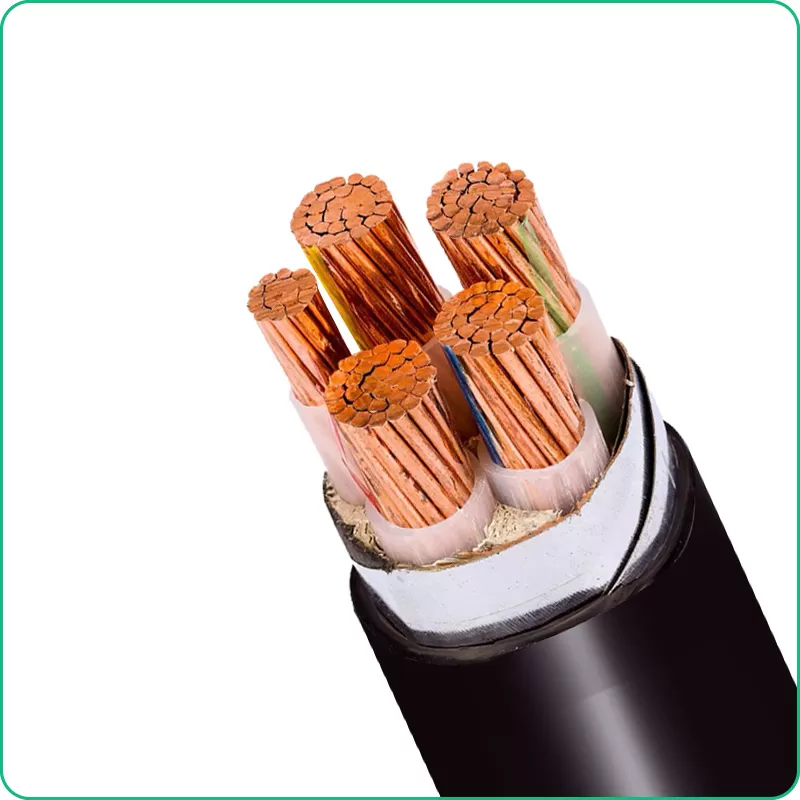

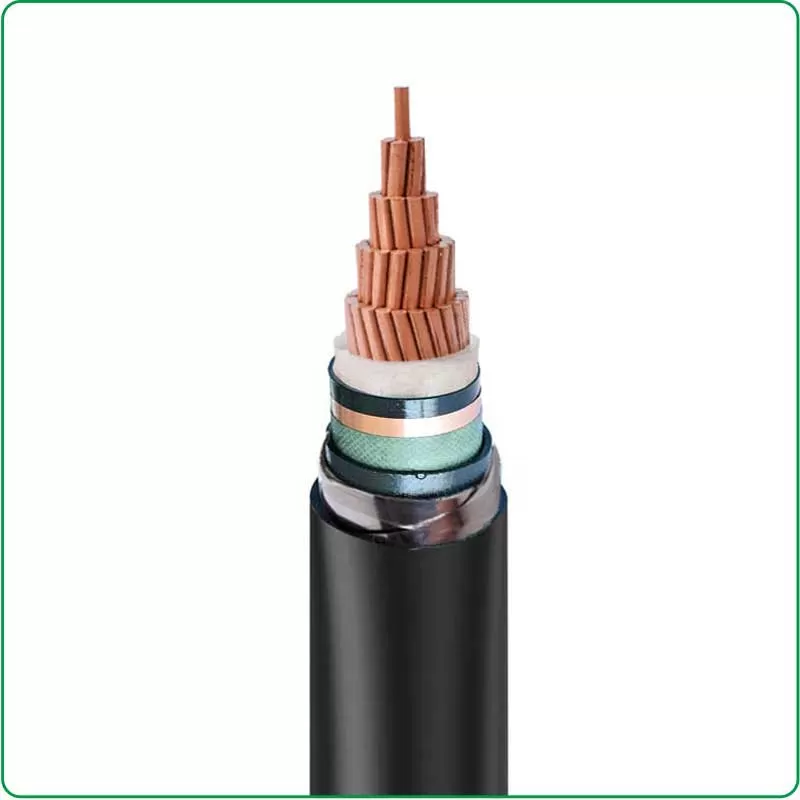

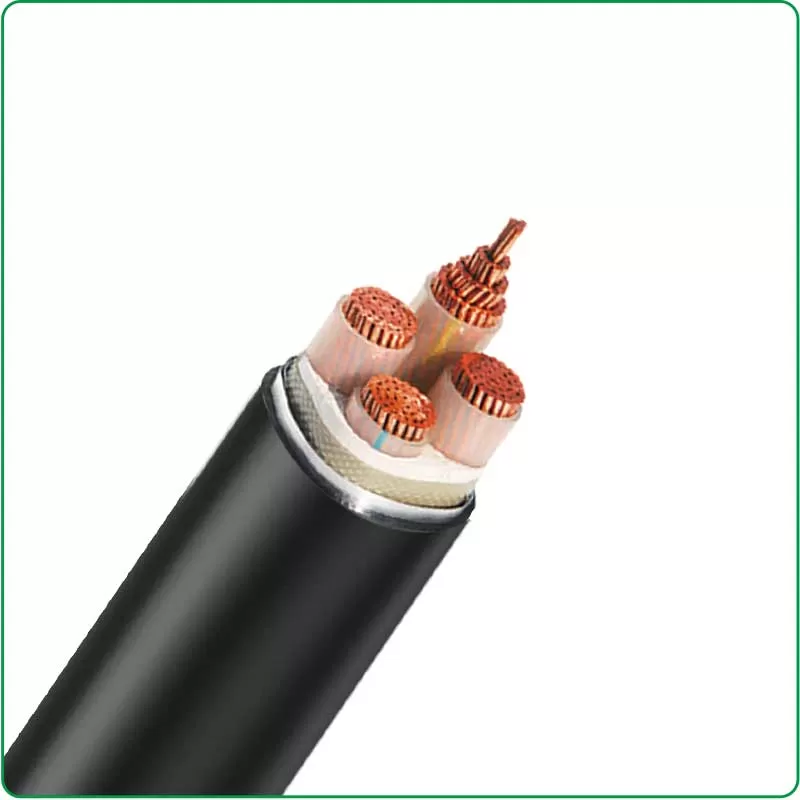

N2XBY CU/XLPE/STA/PVC 600/1000V Low power Cable

600/1000V,XLPE Insulated Cables, With steel tape armoured,PVC Sheath

N2XBY cables are designed for local distribution systems and for delivering power and auxiliary control in the building and construction industry with a voltage rating of 0.6/1kV.The N2XBY is resistant to mechanical stresses as a result of the double layer of galvanized steel tape armour applied to the cable. The STA provides improved flexibility compared to round steel wires or other more rigid armouring.

With a flame retardant PVC outer sheath, the N2XBY cable is suitable for fixed installations internally. The UV resistance makes external applications also permissible.  0.6/1 KV CU/XPLE/STA/PVC cable plays a vital role in low-voltage power transmission and distribution, widely applied in building,industrial, and infrastructure settings to ensure the reliability and safety of power systems. This Power Cable with stranded compacted copper conductor is composed of copper conductor (CU), cross-linked polyethylene insulation (XPLE), steel tape armoring for mechanical protection and a polyvinyl chloride sheath (PVC). For used in electric power plants, transformer stations, industrial plants, metropolitan networks and other electric plants. Applied in conditions requiring protection against heavier mechanical damages, but where cables are not exposed to heavier tensile strain.

Construction

Description: N2XBY, XLPE Insulated Copper Power Cable

Conductors: Class 1 or Class 2 of plain copper,or of Class 5 of plain copper in accordance with IEC 60228.

Insulation: Cross-linked polyethylene XLPE

Insulation Colour: Natural or as required

Filler:  Non-hygroscopic Material

Inner Sheath:  Polyvinyl Chloride PVC

Reinforcement: Steel Tape

Outer Sheath: Extruded Polyvinyl Chloride PVC&Polyethylene PE&LSZH

Colour of Sheath:  Black

Voltage Rating (Uo/U): 600/1000V        Test Voltage: 3.5kV for 5 minutes

Physical Properties

Maximal operating conductor Temperature: up to 70℃（PVC insulation); up to 90℃(XLPE insulation)

Operating Temperature Range: -5℃（PVC or LSZH sheath); -20℃（PE sheath)

Short Circuit Temperature(5 seconds maximum duration): 140℃-160℃（PVC insulation);250℃（XLPE insulation)

Technical Data
