AL/XLPE/SWA/PVC NA2XRY 0.6/1kV Aluminum SWA Cable

Applications

The NA2XRH and NA2XRY are aluminium power cables with a voltage rating of 600/1000V designed to withstand harsh operating conditions and mechanical stresses. They are suitable for use in:

● Power and auxiliary fixed wiring cables

● Power networks

● Underground

● Outdoor and indoor devices

These power cables have a steel wire armour providing mechanical protection and making them suitable for underground installations.

For any more information or advice please contact the office on 0086-18832134509 (WhatsApp/WeChat)

Inquire Now

Details

Overview

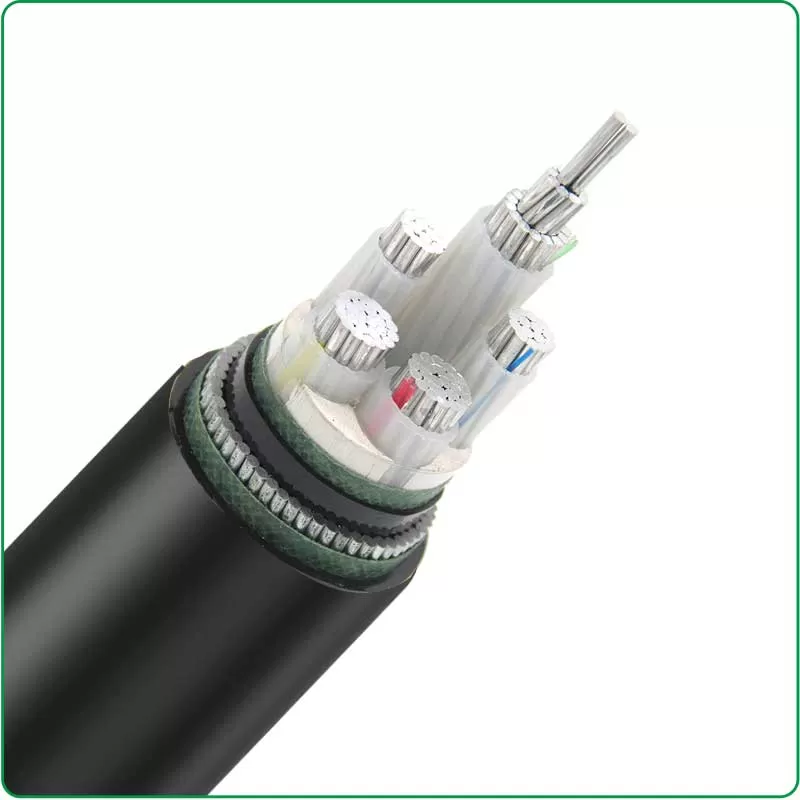

AL/XLPE/SWA/PVC Cable

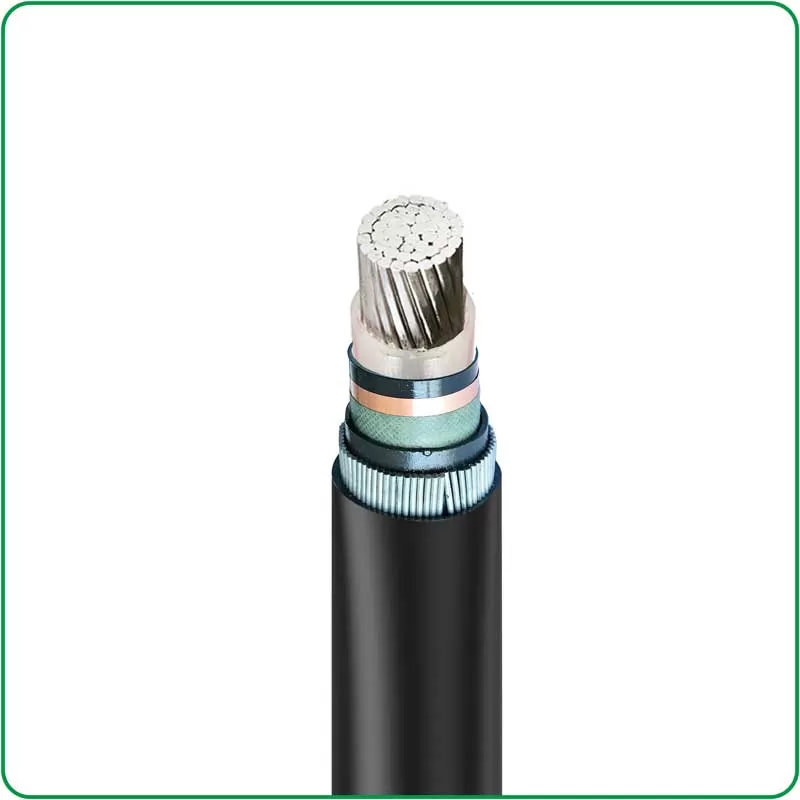

AL/XLPE/SWA/PVC Armoured Power Cables are the perfect choice when you need the toughest and most durable armoured cable for power distribution and transmission. Aluminium stranded conductors with a layer of steel wire armoured (SWA), sheathed in polyethylene (XLPE) thermosetting insulation, and hard-wearing PVC(for the NA2XRY) or LSZH materials (for NA2XRH), these armoured cables can withstand twisting, crushing, impacts, temperature extremes, moisture, chemical hazards, and more. They're suitable for use in a range of environments, from industrial and manufacturing facilities to construction,which is used to connect equipment rated to 90℃. Where the cable is being used to connect equipment rated to 70℃, the NAYRY cable with PVC insulation may be considered.

The NA2XRH cables' halogen-free flame retardant outer sheath makes it suitable for installations in public places where in the event of fire there would be considerable risk to life and sensitive equipment. This range is widely used in public buildings such as hotels, schools, high constructions and hospitals. It is also used in refineries and data centers.

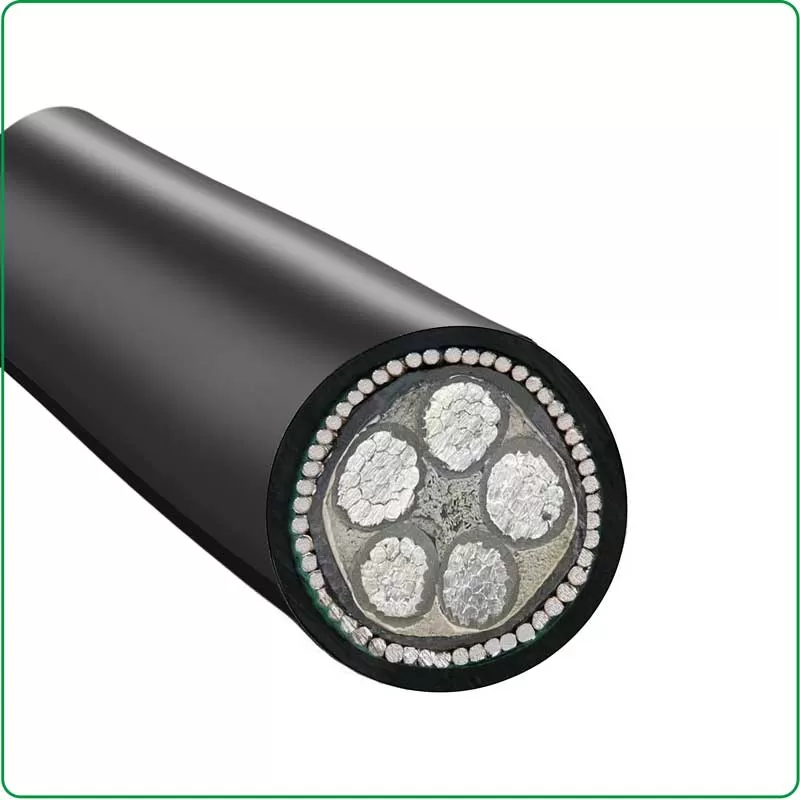

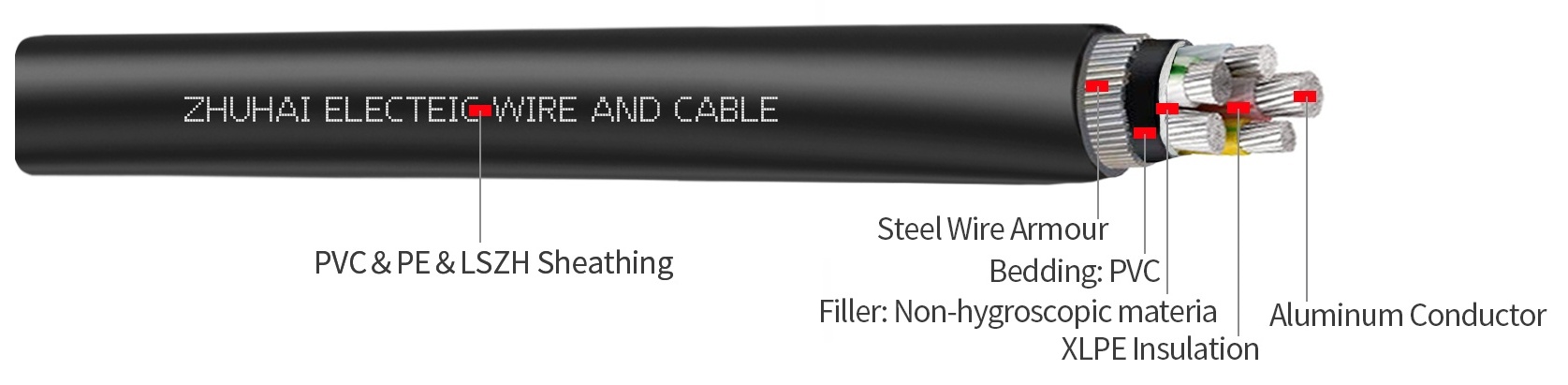

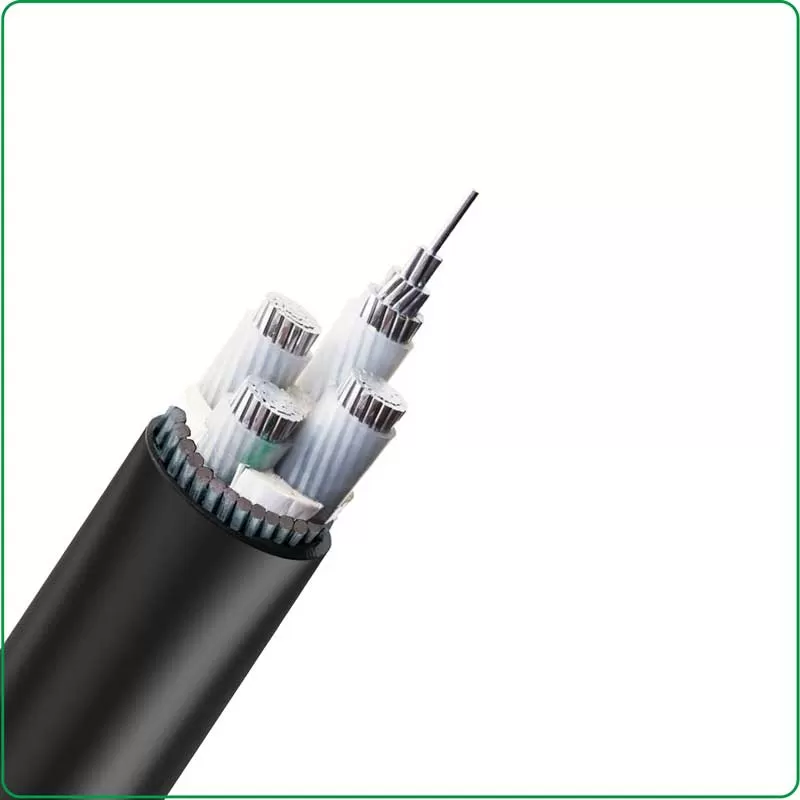

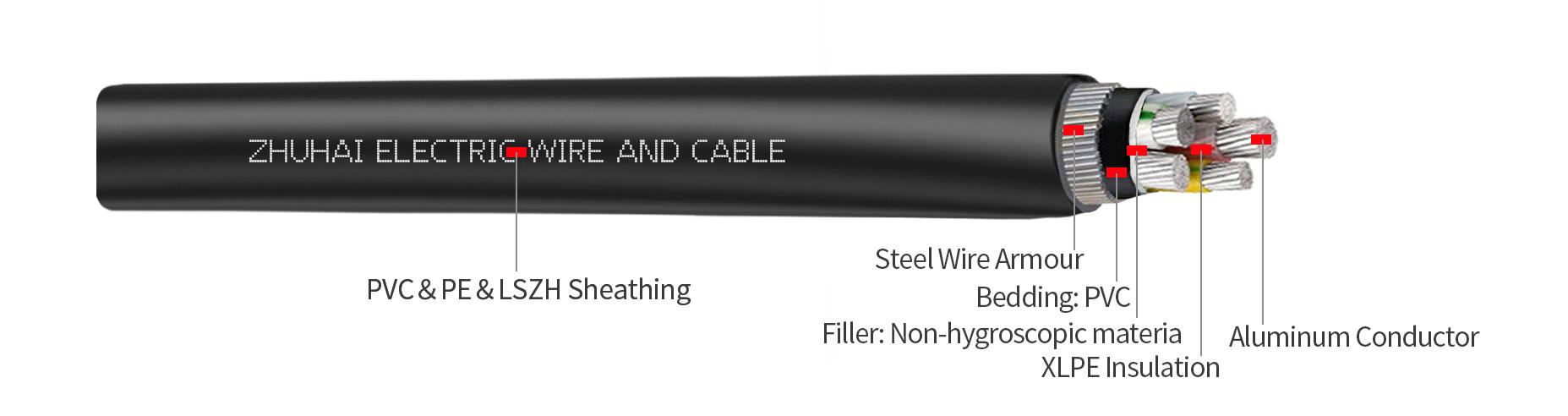

Construction

AL/XLPE/SWA/PVC NA2XRY 0.6/1kV Aluminum SWA Cable

Description: NA2XRY, XLPE Insulated Copper Power Cable

Conductors: Class 1 or Class 2 of plain Aluminum,or of Class 5 of plain aluminum in accordance with IEC 60228.

Insulation: Cross-linked polyethylene XLPE

Insulation Colour: Natural or as required

Filler: Non-hygroscopic Material

Inner Sheath: Polyvinyl Chloride PVC

Reinforcement: Steel Wire

Outer Sheath: Extruded Polyvinyl Chloride PVC&Polyethylene PE&LSZH

Colour of Sheath: Black

Voltage Rating (Uo/U): 600/1000V Test Voltage: 3.5kV for 5 minutes

Physical Properties

Maximal operating conductor Temperature: up to 70℃（PVC insulation); up to 90℃(XLPE insulation)

Operating Temperature Range: -5℃（PVC or LSZH sheath); -20℃（PE sheath)

Short Circuit Temperature(5 seconds maximum duration): 140℃-160℃（PVC insulation);250℃（XLPE insulation)

Technical Data

0.6/1kV-1 core aluminum conductor XLPE insulated steel wire armored PVC sheathed power cable
Nominal cross sectional area	Insulation thickness	Non-magnetic steel Wire diameter	Sheath thickness	Approximate outer diameter	Approx. weight	Max.D.C resistance of conductor（20℃）	Current carrying capacity
mm2	mm	mm	mm	mm	kg/km	Ω/km	In Air(A)	In Ground(A)
1X10	0.7	0.8	1.8	13.2	287	3.08	39	53
1X16	0.7	0.8	1.8	14.3	336	1.91	50	68
1X25	0.9	0.8	1.8	16	417	1.2	66	88
1X35	0.9	1.25	1.8	17.5	575	0.868	81	105
1X50	1	1.25	1.8	19	673	0.641	98	123
1X70	1.1	1.25	1.8	20.8	800	0.443	126	151
1X95	1.1	1.6	1.8	23.1	1065	0.32	154	182
1X120	1.2	1.6	1.8	24.7	1212	0.253	182	207
1X150	1.4	1.6	1.8	26.6	1398	0.206	210	235
1X185	1.6	1.6	1.8	28.8	1610	0.164	245	266
1X240	1.7	1.6	1.9	31.3	1890	0.125	290	312
1x300	1.8	2	2	34.7	2434	0.1	340	354
1x400	2	2	2.2	38.7	2946	0.0778	399	403
1x500	2.2	2	2.3	42.9	3549	0.0605	469	466
1X630	2.4	2.5	2.4	48	4595	0.0469	553	532
1X800	2.6	2.5	2.6	52.7	5459	0.0367	644	613
