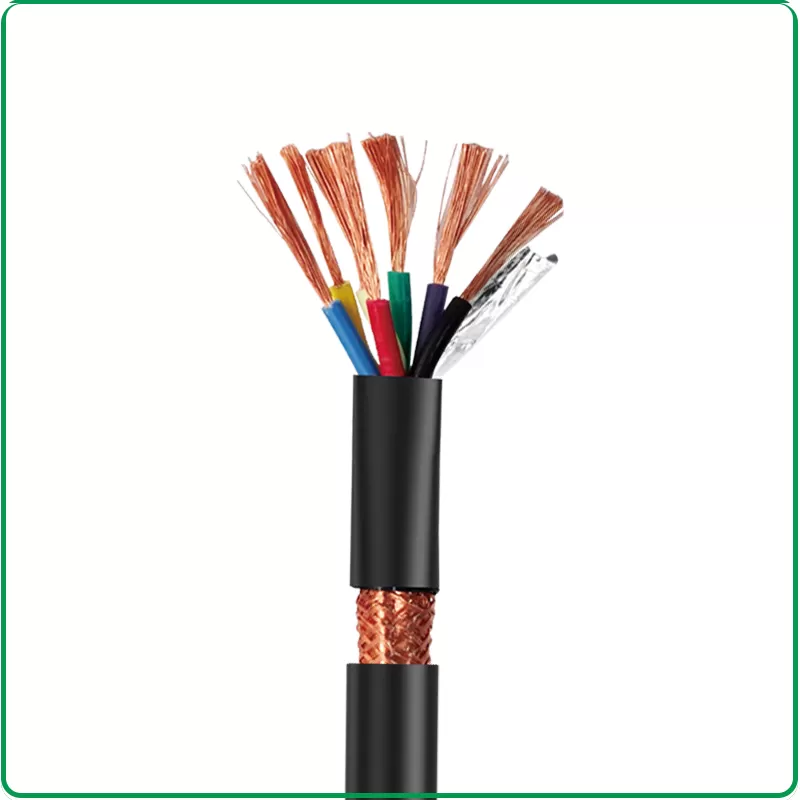

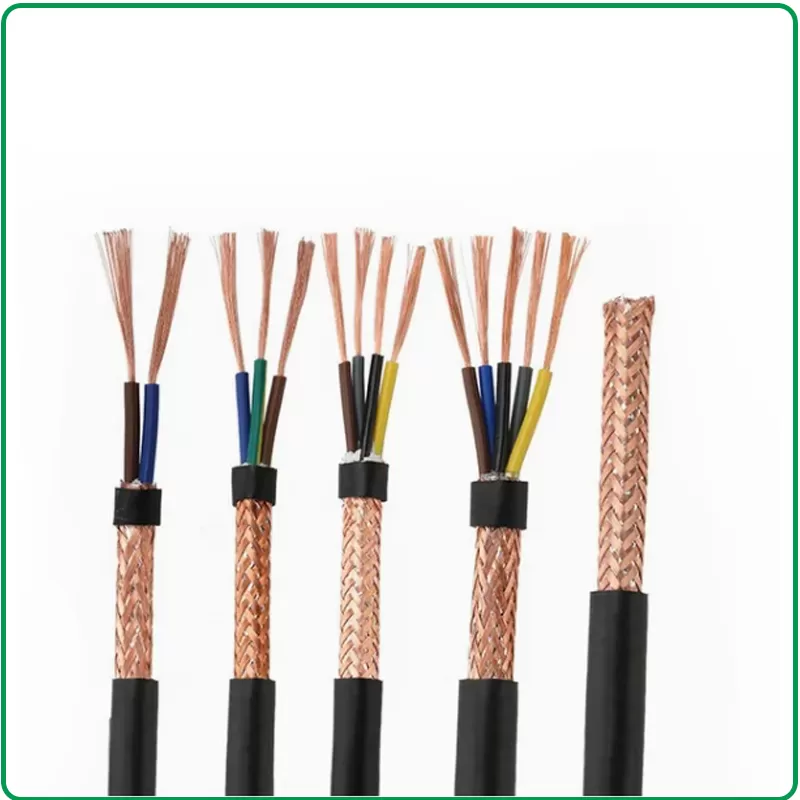

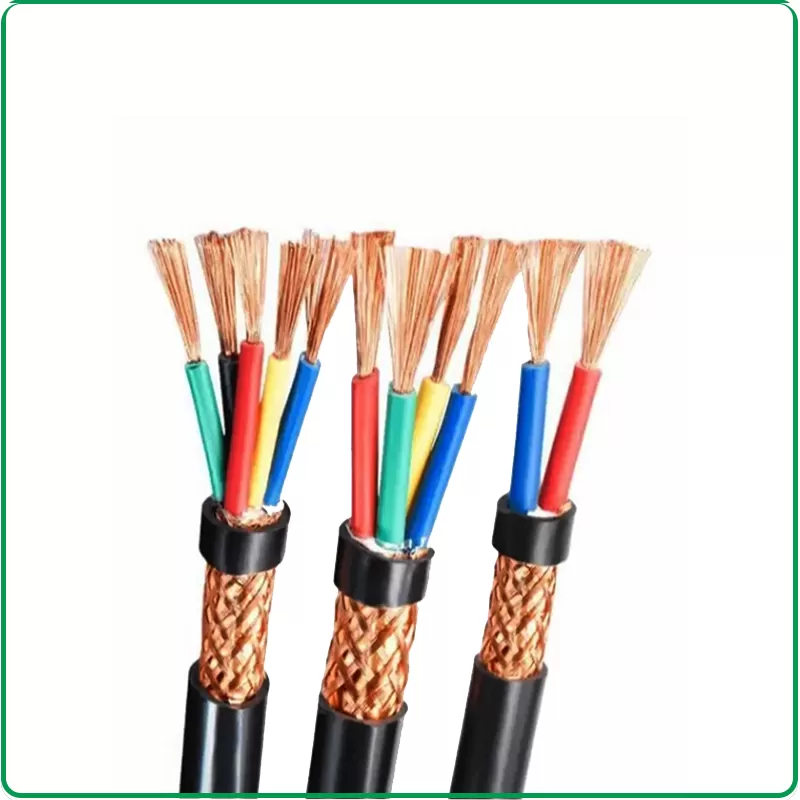

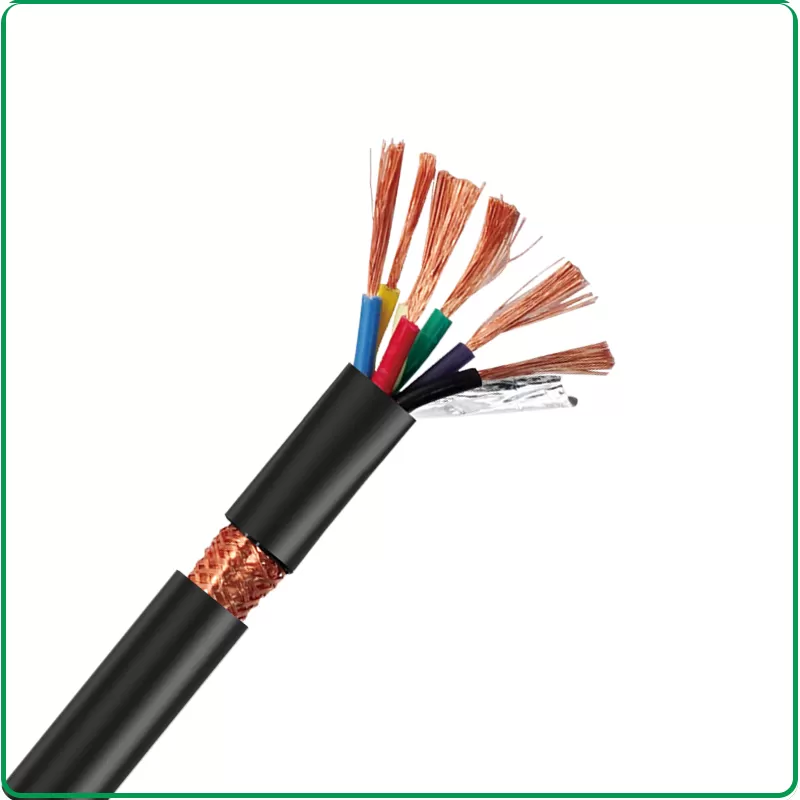

Multicore braided shielding flexible Cable wire

The shielded flexible cable with PVC sheath is primarily used in scenarios requiring efficient and secure data transmission, excelling in applications where signal integrity is critical.Its key features include anti-interference shielding to minimize external signal disruptions, ensuring both high efficiency and security in data transmission.

This cables are ideal for indoor installations(e.g. conduits or cable trays)and short-distance setups where electromagnetic compatibility is critical. This cable type combines flexibility with electromagnetic interference resistance, making it suitable for fixed wiring in environments requiring signal integrity.

CONSTRUCTION

Description: Plain annealed copper stranded flexible cable with copper braided shielding

Conductors: Class5 of plain annealed flexible stranded copper in accordance with IEC 60228

Insulation: Polyvinyl chloride PVC

Filler: Non-hygroscopic Material if needed

Shielding: Copper wire braided

Outer Sheath: Polyvinyl chloride PVC

Colour of Sheath: Black

Voltage Rating(Uo/U): 300/300V

Test Voltage: 2KV for 5 minutes

Anti-interference capability: Shields against EMI in complex electromagnetic environments

Core Identification:

2 Cores: Blue, Brown

3 Cores: Brown,Blue,Green/Yellow

4 Cores: Brown, Black, Grey, Green/Yellow

5 Cores: Brown,Black,Grey, Blue, Green/Yellow

Physical Properties

Maximal operating conductor Temperature: up to 70℃(PVC insulation), up to 90℃(XLPE insulation)

Operating Temperature Range:-5℃(PVC or LSZH sheath); -20℃ (PE sheath)

Short Circuit Temperature(5 seconds maximum duration): 140℃-160℃(PVC insulation);250°C (XLPE insulation)
